A digital storage oscilloscope (DSO) is an oscilloscope which stores and analyses the input signal digitally rather than using analog techniques. It is now the most common type of oscilloscope in use because of the advanced trigger, storage, display and measurement features which it typically provides.
The input analogue signal is sampled and then converted into a digital record of the amplitude of the signal at each sample time. The sampling frequency should be not less than the Nyquist rate to avoid aliasing. These digital values are then turned back into an analogue signal for display on a cathode ray tube (CRT), or transformed as needed for the various possible types of output—liquid crystal display, chart recorder, plotter or network interface.
1) Siglent Technologies SDS1052DL
SDS1000DL+ is a dual-channel universal digital oscilloscope, available in 50 MHz bandwidth. It includes a 32 kpts memory depth that helps to ensure accurate waveform resolution and to capture longer signal lengths. With its 7 inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 500 MSa/s sampling rate, the SDS1000DL+ supports 32 parameters measurements and common mathematical operations to speed up complex / repetitive measurements.
All specification applies to 10X probe and All the SDS1000DL Series Digital Storage Oscilloscopes. To verify that the oscilloscope meets specifications, the oscilloscope must first meet the following conditions:
● The oscilloscope must have been operating continuously for thirty minutes within the specified operating temperature.
● You must perform the Do Self Cal operation, accessible through the Utility menu, if the operating temperature changes by more than 5° C.
● The oscilloscope must be within the factory calibration interval
Key Features
- 50 MHz bandwidth model
- Real-time sampling rate up to 500 MSa/s
- Memory Depth up to 32 kpts
- Trigger types: Edge, Pulse, Video, Slope, Alternate
- Waveform math functions:+, -, *, /, FFT
- 6 digital frequency counter
- Supports Multi-language display and embedded online help
- Screensaver from 1 minute to 5 hours
- Digital filter and waveform recorder function
- Shortcut storage function key
- 7 inch TFT-LCD display with 800 * 480 resolution
- Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
2) Hantek Digital Oscilloscope DSO2C10
Cost-effective economy oscilloscope, 150MHz Bandwidth, 1GSa/s, 8M memory depth; with 1CH 25MHz waveform generator, support arbitrary waveform output; 14 kinds of trigger modes, standard with 5 kinds of serial protocol triggers and decodes; 32 kinds of auto measurements with statistics; 3-digit digital voltage meter and 6-digit hardware frequency indicator functions; 2 sets of DVM; Abundant SCPI remote command control. It is a useful commissioning instrument for various fields such as communication, aerospace, national defense, embedded systems, computers, research and education.
Feature:
1) 2 channels which are respectively controlled by independent knobs
2) 100 MHZ and 150MHZ analog channel bandwidth
3) Sampling rate up to 1 GSa/s
4) 8M memory dept
5) Vertical range 2mV/div ~ 10V/div
6) Built-in 1 CH 25MHz waveform generator (DSO2D10, DSO2D15)
7) Vertical resolution: 8bit
8) BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN
9) A 3-digit digital voltage meter and a 6-digit hardware frequency indicator
10) 2 sets of digital voltmeters
11) Support threshold testing, free measurements within the screen
12) Abundant SCPI remote command control
13) USB Host/Device

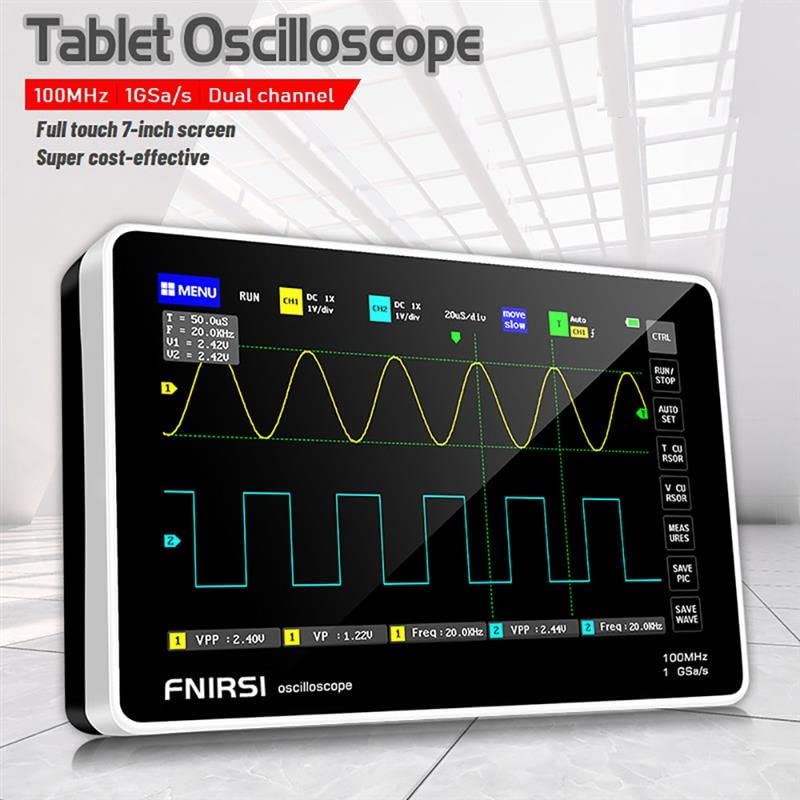

3) amiciSense 7” Touch Screen Digital OScilloscope
- Dual Input: - Oscilloscope that has 2 input channels and a real time sampling rate of 1GSa/s and an analog bandwidth of 100 MHz*2 with input impedance of 1 m ohm. Also these input channels have built-in high voltage protection modules which can tolerate up to 400V input.
- Display:- 7” TFT LCD Display with 800x480 resolution and capacitive touch screen (same as the touch mode of modern mobile iPad).
- Trigger Function and Auto-Adjustment: - With three trigger functions i.e automatic(test cycle analog signal), normal(test aperiodic digital logic signals) and single(test the sudden aperiodic burst signal) mode it can be used freely for periodic analog signals or non-periodic digital signals. The waveform will adjust automatically within one second when the dual channel is started.
- Storage: - 1 GB built-in storage ensures 1000 screenshots and 1000 sets of waveform data that can be stored any time with a single touch. Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer
- 4 Hour Standby: - 6000mah Rechargeable battery that ensures 4 hours of standby.
